Name: Ink Machines Stingray X2
Brand: Ink Machines
Price: 925.0 AUD
Availability: InStock

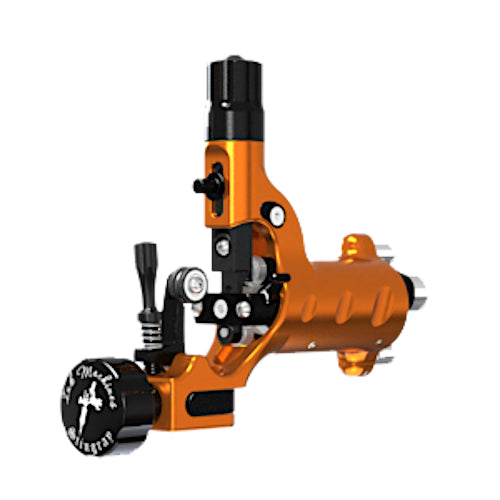

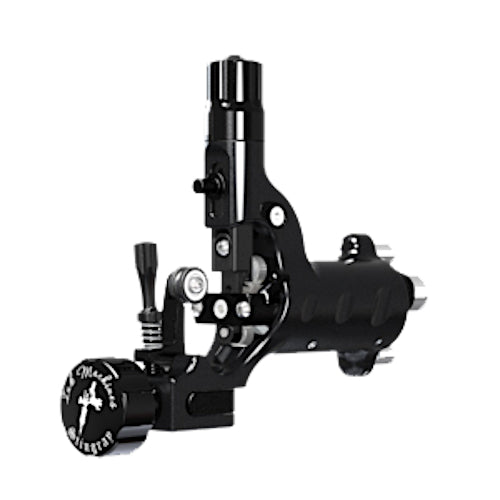

Ink Machines Stingray X2

$925.00

New Swiss X2 motor

Exclusive for the X2 models. Hi-performance motor with 6W mechanical output. High energy efficiency (86%). Optimal for battery operation with the RPS-600. Runs all type of standard and cartridge needles*.

New 4mm stroke stainless steel cam

The standard cam has been replaced with a new 4mm stroke cam made from stainless steel to enhance durability and lining performance. Cams can be exchanged like before. Four different cams are available for purchase as a kit. The new 4mm steel cam comes as standard.Use tool kit No.90 for quick and easy cam change.

Easy to convert between standard and cartridge needles

When using cartridges the Stay up spring must be removed to prevent strain on the motor and to function properly. The X2 version has a lid in the frame that allows quick access to the Stay up spring. Easy to remove and insert when choosing between standard and cartridge needles.

More stable give adjustment

New Cap with built in damper prevents clatter and excessive noise when using the softer give settings. Allows to use the whole 3 turns adjustment efficiently and without clatter.

Higher precision and finish

The X2 models have several improvements regarding component materials and precision.

Lightweight (85 grams)
Silent
Low vibrating
Ergonomic
Don’t need rubber bands
Adjustable hitting force
Accepts standard grips, tubes and needles
Compatible with cartridge needles
Both clip cord & RCA connections
Works with most power supplies 0-13V
Exchangeable cams
Normally stops in upper position
No moving components in contact with plastic barrier
High durability
Wireless ready for RPS-600

Input voltage: 0-13 volt DC (max 13 volt DC)

Power connections: RCA or clip cord (max. clip cord end diam Ø1.6mm)

Rpm range stitches/sec: 0-8 000 rpm/min 0-130/sec

Stroke length: 2.6 - 3.5 mm depending on cam used

Suspension stroke: 0-2mm

Max. tube diam Ø: Ø8mm

Max. needle size: 50 magnum

Weight: 85 grams

Wireless ready: Yes

Dimensions LxBxH: 95 x 21 x 77mm

Ink Machines Scorpion

$950.00

Designed with the tattoo artist in focus

With active vibration damping, smooth contactless magnetic needle drive and improved cross contamination control, the unique kinetic design allows for fast saturation but also does minimal damage to the skin.

Organising and overall work space orderliness is easier than ever with magnetic fixation, secures the needles where you want them when working.

Suitable for use with most cartridges.

Included in the box:

Scorpion tattoo machine with standard 22mm aluminium grip.
Drive magnet Standard (White).
Drive magnet Strong (Red).
Tool kit No.90
Conversion kit No.110
Needle stand. 4 needles can be placed on this stand. Add extra stand if more needles are used.
Oil.

Dragonfly Part 95 - Spring Lid inc Screw

$2.50

Spring holder for the stay up spring. Only fits the X2 models.

Dragonfly Part 31 - Needlebar Retainer O-Ring

$3.50

Replaces the old o-ring and gives better stability. Only one is required per machine.

Dragonfly Part 41B - X2 Eccenter Assembly

$55.00

Fits all Dragonfly machines. Pre-set to stroke length of 2.6mm, 3.7mm or 4.5mm.

Can also be adjusted from 2.6 to 4.5mm.

Note that you will also need circlip pliers to replace this assembly.

Use the circlip pliers to remove the circlip and push out the connecting pin. Loosen the excenter from the motor shaft with a 0.9mm allen key. There are two screws on the standard excenter, one for the motor shaft and one for the bearing shaft. You only need to use the one for the motor shaft. Install the new assembly on the motor shaft and make sure that the screw ends up on the flat part of the shaft and tighten it securely. Check that the connecting rod aligns properly with the groove in the piston. This is important, if it does not align correctly it will not run properly and you might have to readjust the location of the motor. In that case please refer to the manual or send for service. If ok, align the upper bearing with the hole in the piston and insert the connecting pin then install the circlip.

Dragonfly Part 47 - Clipcord Binding Posts

$22.00

Do not over tighten the screws that holds the binding post positive. This can damage the plastic insulation sleeve and may cause a short circuit. Just tighten enough to hold it in place. The screw that holds the end of the motor cord likewise or the cord can be damaged.

Dragonfly Part 44 - Needlebar Retainer Assembly

$45.00

Install the needlebar retainer assembly by placing the retainer spring in the groove of the needlebar retainer. Push the retainer fix screw through the first hole opposite of the retainer bearing side, through the retainer spring and into the second hole. Leave the retainer fix screw end flush to the needlebar retainer surface on the bearing side. Put the needlebar retainer assembly in the groove of the frame and slide it back into place. Make sure that the end of the retainer spring engages correctly with the groove in the frame. Hold it in place while tightening the retainer fix screw.

Dragonfly Part 43 - Tube Vice Assembly

$45.00

Dragonfly Part 43 - Tube Vice Assembly

Ink Machines RPS-600 Wireless Power Supply with 2 Power Packs

$1,250.00 $900.00 Save 28%

*We currently have a shop demo model of this kit that has been opened and used a few times, still in good condition, $350 less than new price.

The RPS-600 wireless power supply is a system designed for tattooing without cords attached to the tattoo machines or the foot switch. Powerpacks are made with leading edge battery technology weighing only 65 grams designed not to interfere with the hand more than the machine normally does. Once the machines are rigged with Powerpacks the main unit will sense which machine is picked up and recall the settings for that machine. High capacity batteries allows aprox 5 hours of effective running time and charging takes about one hour.

Communications between the units are by radio for optimal reliability and performance. To make the system complete we incorporated functions like Kickstart and Boost mode. Kick start allows the machines to start easy and run at low voltage. Boost mode actively controls the voltage to maintain the same speed during various loads and increases the machine power significantly. In short the RPS-600 is a complete system to control and combine your tattoo machines whether it’s a Dragonfly, Stingray or a coil machine. The RPS-600 can handle up to 6 machines with wireless Powerpacks.

* Effective running time means the actual time the machine is running in air and skin during a typical session.

Package Includes:

1 RPS-600 main unit

1 WFS Wireless foot switch

2 Powerpacks

1 Power adapter 24V including power cord

1 USB cable

1 Custom fitted plastic case

Wireless Powerpacks (battery packs) for Dragonfly and Stingray
Fits all existing original Dragonfly and Stingray machines
Wireless foot switch with long life battery and magnetic switch
Hygienic and ergonomic, no cable to machines and no brackets needed for the main unit
Large LCD display with easy to use UI (user interface)
High capacity batteries to handle the most demanding sessions
Activate by shaking (tilting) the machine. Powerpacks recalls settings
Handles up to 6 Powerpacks (wireless machines) + cable machine(s)
Built in kick start ensures startup at low voltage
Boost mode = more power and torque when needed
Runs regular coil and rotary machines with cord
Easy to encapsulate machines and Powerpacks in plastic bags
USB connection for future software upgrades

Output Wireless: 5-13V

Output Cable: 4-18V

Compatibility by cable: Various machines and foot switches

Connections: ¼ phono (6.35mm)

LCD display: 2.7” 60x33mm

Powerpack Weight: 65g

Powerpack Capacity: Approx 5 hours each

Powerpack Battery life: Approx 500 charging cycles

Powerpack compatibility: Dragonfly / Stingray

Powerpack Charging: Approx 1 hour

Footswitch: Wireless included

USB: YES (Only for software upgrades)

Operating temp: 10-35 ̊C Indoor use only

Input Power: 100-240V 50-60Hz

Made In Sweden
