Quickly and easily convert any tattoo machine to the trouble-free, solid connection of RCA connector cords.
The Eikon Direct Connection RCA Conversion does not alter the existing setup of your machine; it bolts directly onto the spring saddle and allows for the use of either an RCA connector cord or a conventional clip cord.
Complete with installation instructions. Does not require soldering.
Made in Canada.

FK Irons Coil Rebuild System Kit 1.5"

Regular price $195.00 Save $-195.00

One bobbin 25.4mm and a second, smaller (half-size) thereby the name "one and a half".
These bobbins are wrapped in 8 layers (8-wrap) of copper wiring for optimal connectivity.

FK Irons Twin Coil System 1"

Regular price $75.00 Save $-75.00

This twin 1" wrap coil system has been designed to suit most "1" shorty" style frame.
The core is CNC milled from a 1018 Cold Rolled Steel Rod. Its diameter is 5/16" with a 7/16 T-Top to improve torque and consistency. (We also carry 7/16 wide armature bars to match this setup).
The coil system comes with 33uf X 35 Volts capacitor.
This Coil System is the standard of our Pyro and Al13 Pyro X Machines.

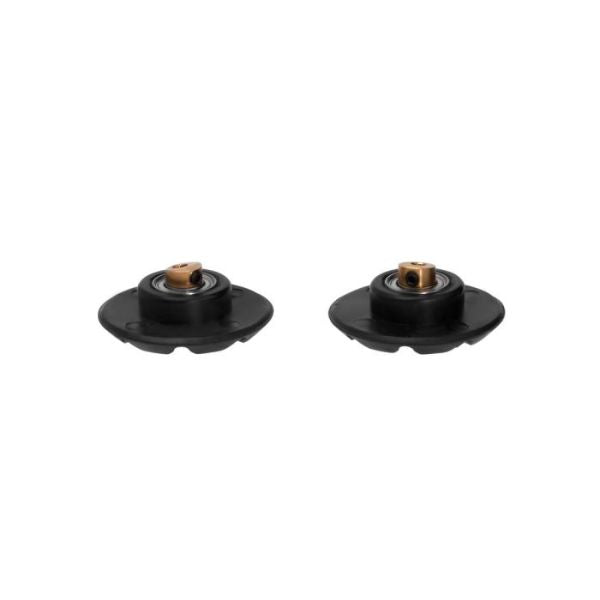

FK Irons Xion Stroke Wheel

Regular price $70.00 Save $-70.00

These stroke wheels comes with cam, bearing and screw, ready to be installed in your Xion MotorBolt. Changing stroke wheels will change the needle displacement.

Available in 3.2mm and 3.7mm.

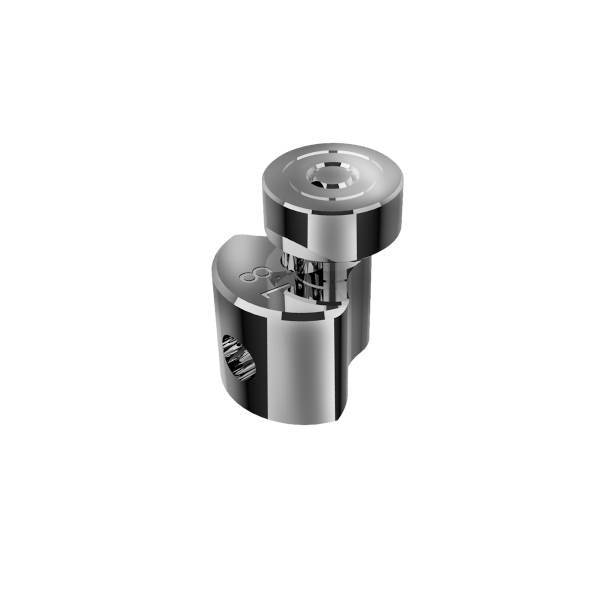

FK Irons Xion S Stroke Wheel

Regular price $70.00 Save $-70.00

These stroke wheels comes with cam, bearing and screw, ready to be installed in your Xion MotorBolt. Changing stroke wheels will change the needle displacement.

Available in 1.8mm and 2.5mm.

FK Irons Xion Body O-Rings

Regular price $11.00 Save $-11.00

These O-rings ensure a secure locking seal on the Spektra Xion body to your grip.

With the Give Knob facing up, the first O-ring you will find is the 16mm; the second one will be the 17mm.

Pack of 6:

(3) 16mm x 1.5mm O-rings
(3) 17mm x 1.5mm O-rings

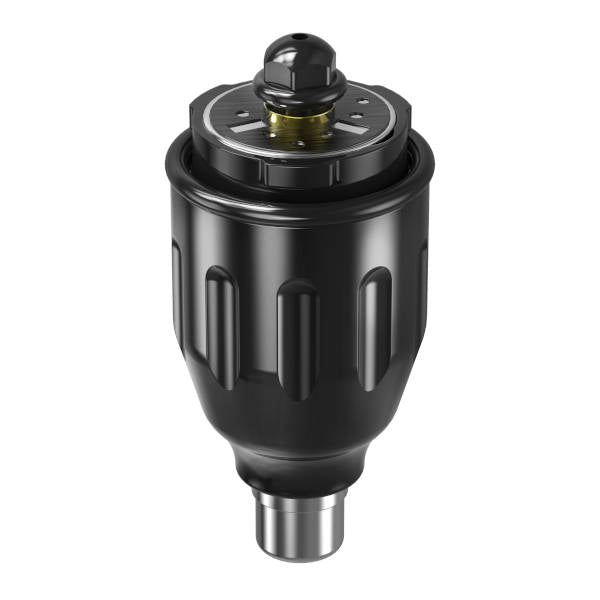

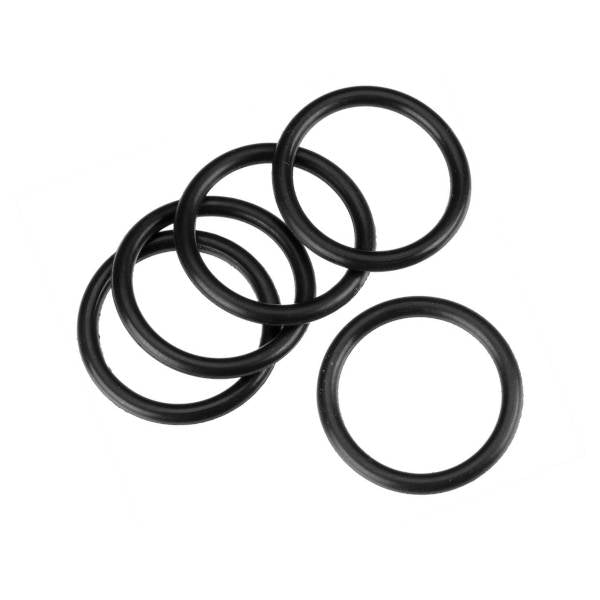

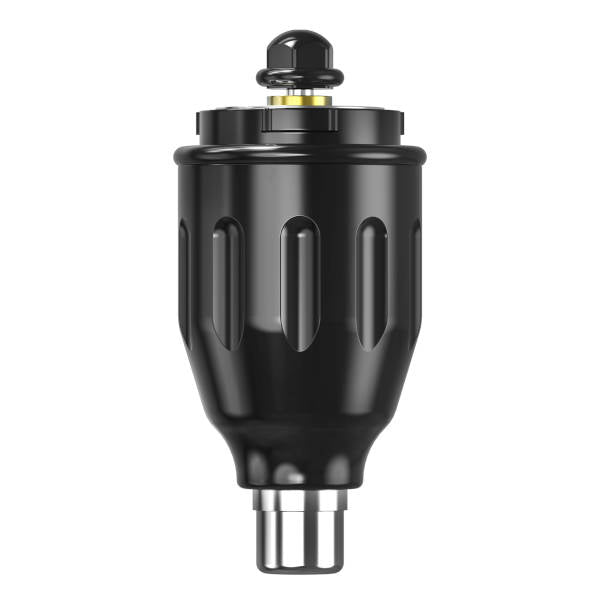

FK Irons MotorBolt O-Rings

Regular price $11.00 Save $-11.00

Pack of 5, 16mm x 2mm O-rings.

These O-rings ensure a secure locking seal on Spektra Xion, Spektra Edge X, Spektra Halo2, and the Spektra Direkt 2 MotorBolts.

Dragonfly Service Fee

Regular price $25.00 Save $-25.00

Basic tune up and service for your Dragonfly machine.

Note: this must only be added to a regular order of at least $50 (excluding this fee, GST and postage). Your machine will be serviced and returned with your order.

Once you have placed your order post your machine to:

Brett Stewart Tattoo Supplies
5 Craddock Street
North Geelong VIC 3215

Drive Bars 3 Pack

Regular price $8.00 Save $-8.00

Set of three drive bars - 84mm, 89mm and 95mm.

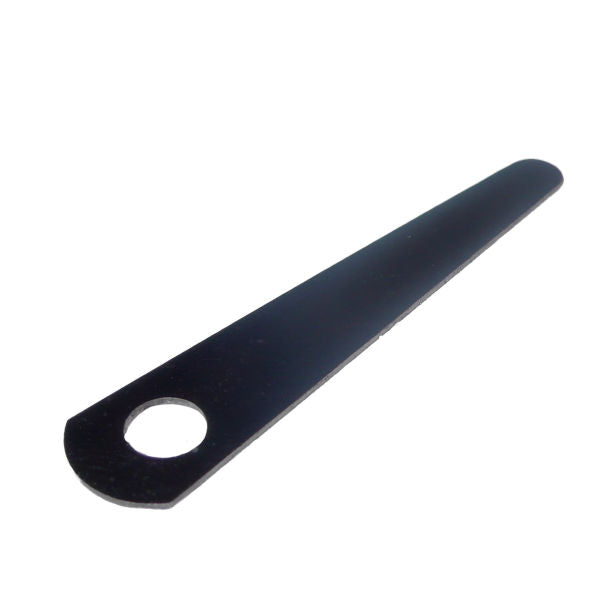

Welker Cutback Liner Front Spring

Regular price $3.50 Save $-3.50

Cutback liner front spring for coil machines available in 16g, 18g, 20g and 22g.

Welker Shader Front Spring

Regular price $3.50 Save $-3.50

Shader front spring for coil machines available in 16g, 18g, 20g and 22g.

Welker Rear Spring

Regular price $3.50 Save $-3.50

Rear spring for coil machines available in 16g, 18g, 20g and 22g.

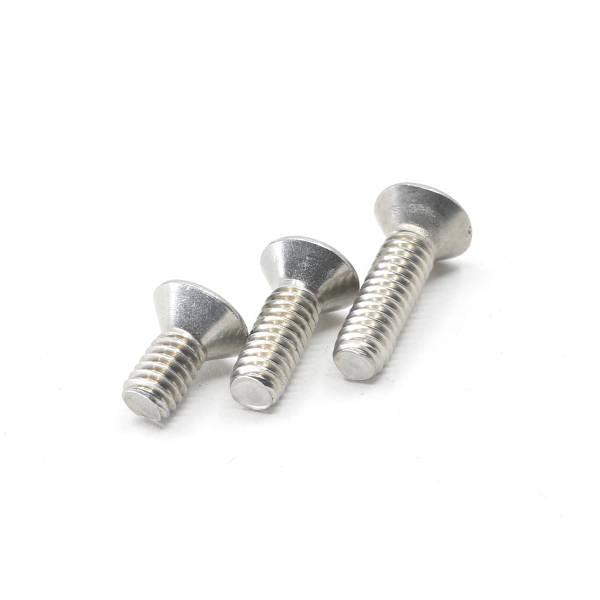

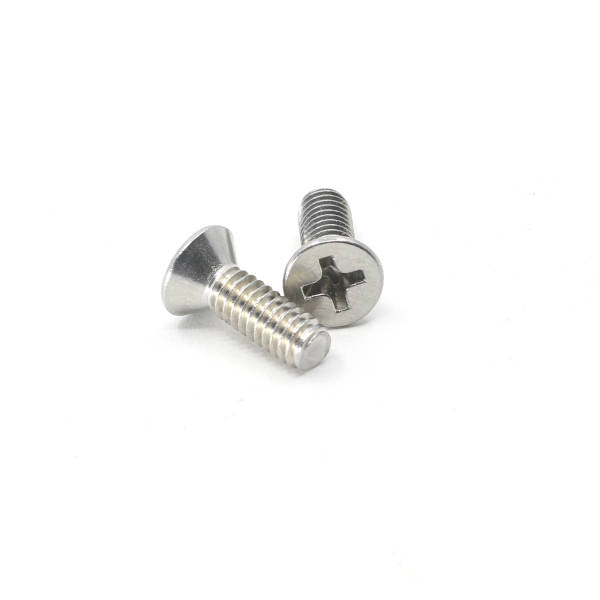

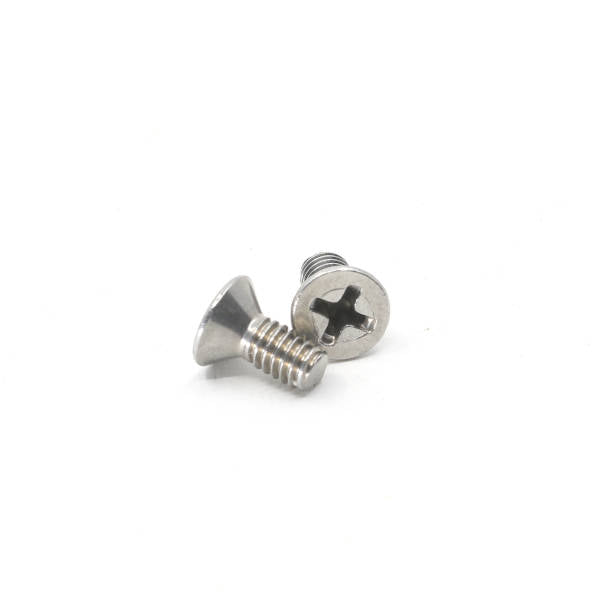

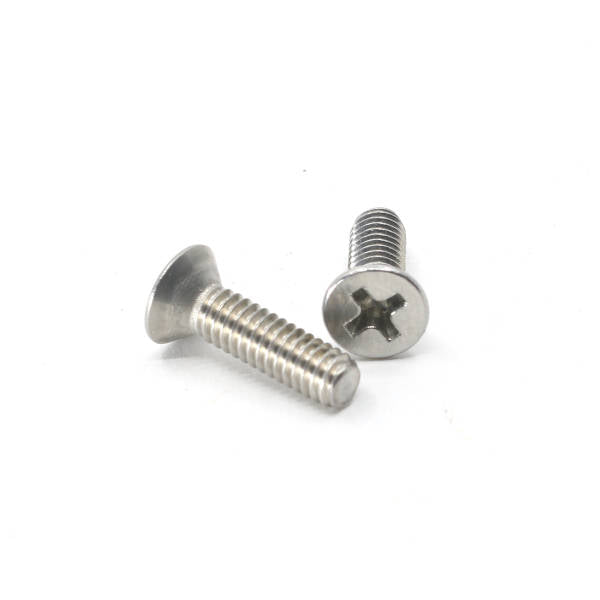

Coil Screws - Pair - Stainless Steel

Regular price $3.00 Save $-3.00

Flat head, phillips drive
3/8, 1/2 or 5/8 inch
8/32 UNC US thread
Fits USA made coil machines
Pair of screws

Armature Bar Alignment Tool

Regular price $8.00 Save $-8.00

Dragonfly Part 95 - Spring Lid inc Screw

Regular price $2.50 Save $-2.50

Spring holder for the stay up spring. Only fits the X2 models.

Dragonfly Part 96 - Cover

Regular price $5.00 Save $-5.00

Plastic cover for more hygienic operation. Fits the Dragonfly with no tools required to fit or remove.

Dragonfly Part 31 - Needlebar Retainer O-Ring

Regular price $4.00 Save $-4.00

Replaces the old o-ring and gives better stability. Only one is required per machine.

Dragonfly Part 25 - Circlip

Regular price $1.50 Save $-1.50

Note that you will also need circlip pliers to replace this part.

Make sure to adjust the circlip pliers gap so that it does not over stretch the circlip or the circlip will become useless. It should open just enough so that the circlip clears the pin.

Dragonfly Part 19 - Inner Piston Spring STD 2260

Regular price $2.50 Save $-2.50

The inner piston spring controls the return action of the inner piston. Like all springs it will get weaker/softer with time. If the inner piston starts to clatter (rattling sound) it can be a sign that it is too weak. To resolve this you can either replace it with a new or you can stretch it about 2mm. Also make sure that the inner piston is oiled and moves easy.

This spring can also be used with the Stingray when used as a shader.

Dragonfly Part 24 - Stay Up Spring

Regular price $3.50 Save $-3.50

Note:

For the Dragonfly you need circlip pliers to replace this part.
For the Stingray you need the precision tool kit to replace this part.

Dragonfly Part 28 - Retainer Screw Spring

Regular price $2.50 Save $-2.50

If the retainer screw vibrates loose during action you can stretch the retainer screw spring to prevent this.

Dragonfly Part 40 - Piston Assembly

Regular price $55.00 Save $-55.00

Note that you will also need circlip pliers to replace this assembly.

When replacing you need to remove the cap and the needlebar pin. Use the long end of a 1.5mm allen key (the largest allen key supplied with the machine) and insert it through the hole in the adjustment screw to loosen. Use circlip pliers to remove the circlip and push out the connecting pin. Put some grease or oil on the new piston assembly and insert it into the frame, make sure that the stay up spring is in place and engages with the spring stop screw in the frame. Insert the connecting pin and install the circlip. The needlebar pin should have a clearance of approximately 0.5mm from the backside of the flange to the frame.

Dragonfly Part 41B - X2 Eccenter Assembly

Regular price $60.00 Save $-60.00

Fits all Dragonfly machines. Pre-set to stroke length of 2.6mm, 3.7mm or 4.5mm.

Can also be adjusted from 2.6 to 4.5mm.

Note that you will also need circlip pliers to replace this assembly.

Use the circlip pliers to remove the circlip and push out the connecting pin. Loosen the excenter from the motor shaft with a 0.9mm allen key. There are two screws on the standard excenter, one for the motor shaft and one for the bearing shaft. You only need to use the one for the motor shaft. Install the new assembly on the motor shaft and make sure that the screw ends up on the flat part of the shaft and tighten it securely. Check that the connecting rod aligns properly with the groove in the piston. This is important, if it does not align correctly it will not run properly and you might have to readjust the location of the motor. In that case please refer to the manual or send for service. If ok, align the upper bearing with the hole in the piston and insert the connecting pin then install the circlip.

Dragonfly Part 47 - Clipcord Binding Posts

Regular price $22.00 Save $-22.00

Do not over tighten the screws that holds the binding post positive. This can damage the plastic insulation sleeve and may cause a short circuit. Just tighten enough to hold it in place. The screw that holds the end of the motor cord likewise or the cord can be damaged.

Dragonfly Part 46 - RCA Contact with Nut

Regular price $10.00 Save $-10.00

When installing the new RCA contact it is important that it is not tightened too hard against the contact plate at the back of the motor as it can move the motor out of its location. Adjust it to the contact plate gently without the nut interfering and then tighten the nut gently.

Dragonfly Part 44 - Needlebar Retainer Assembly

Regular price $50.00 Save $-50.00

Install the needlebar retainer assembly by placing the retainer spring in the groove of the needlebar retainer. Push the retainer fix screw through the first hole opposite of the retainer bearing side, through the retainer spring and into the second hole. Leave the retainer fix screw end flush to the needlebar retainer surface on the bearing side. Put the needlebar retainer assembly in the groove of the frame and slide it back into place. Make sure that the end of the retainer spring engages correctly with the groove in the frame. Hold it in place while tightening the retainer fix screw.

Dragonfly Part 43 - Tube Vice Assembly

Regular price $50.00 Save $-50.00

Dragonfly Part 03B - X2 Cap Assembly

Regular price $20.00 Save $-20.00

Cap assembly complete with damper for the X2 machines.

InkJecta Nano Drive Bar Semi-Rigid

Regular price $15.00 Save $-15.00

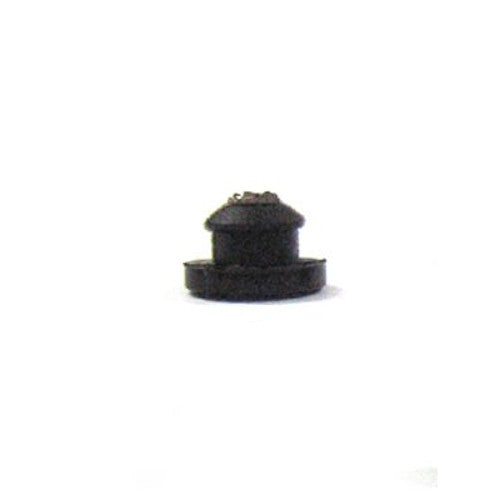

Grommets

Regular price $7.00 Save $-7.00

Bag of 100.

Available in:

Top hat with lip, black.

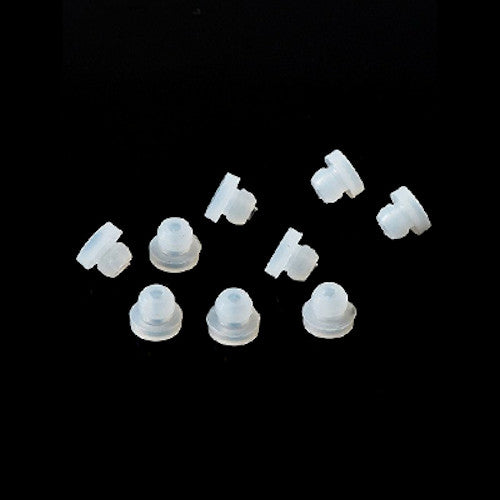

Silicone with lip, clear white.

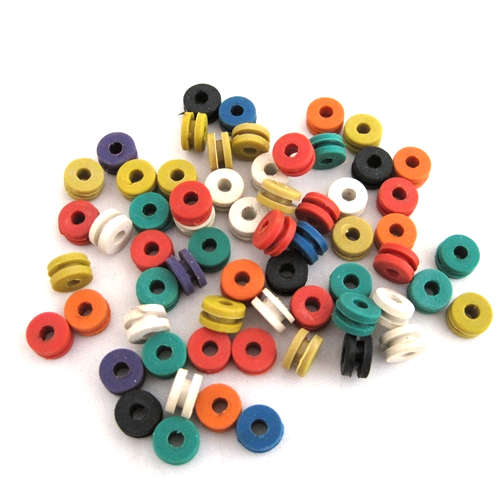

Hamburger, mixed colours.

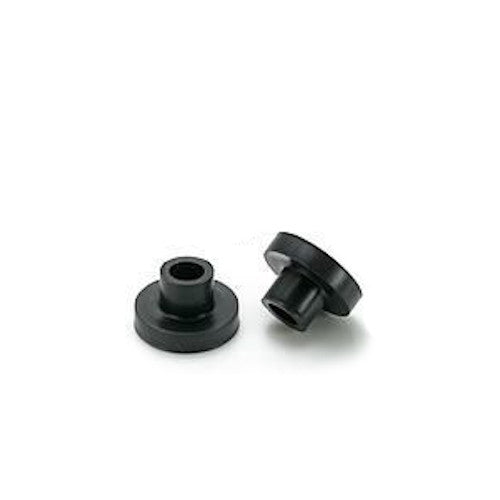

Precision top hat, black.

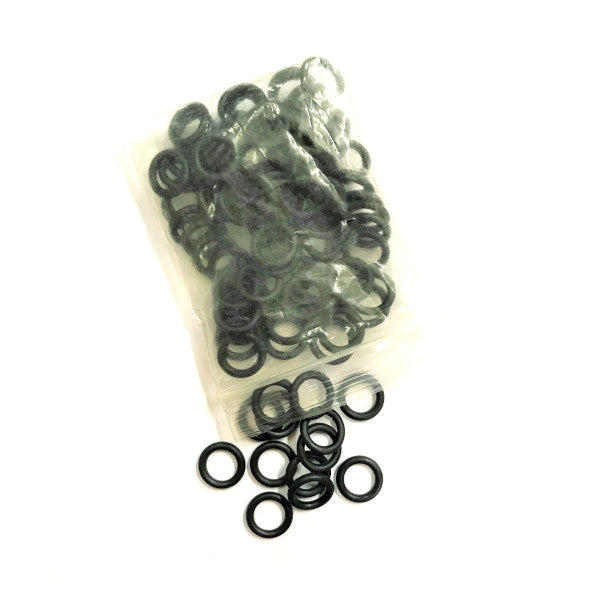

O Rings

Regular price $7.00 Save $-7.00

Bag of 100.

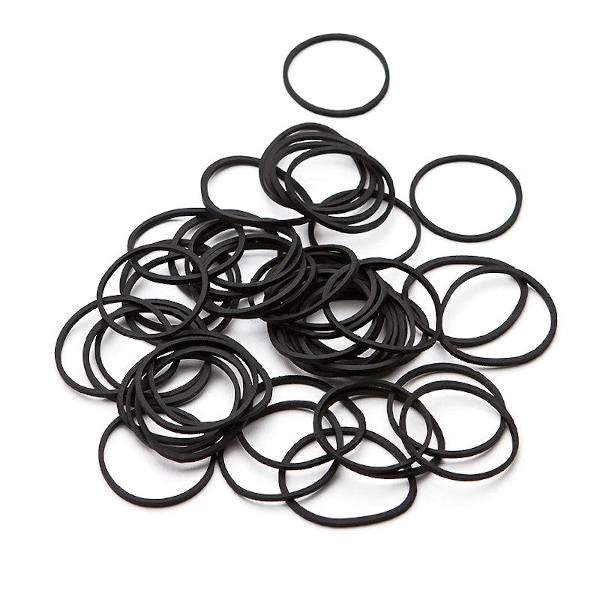

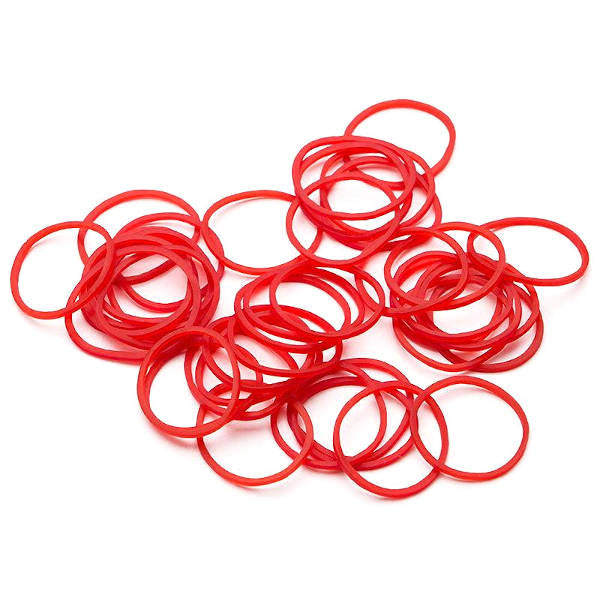

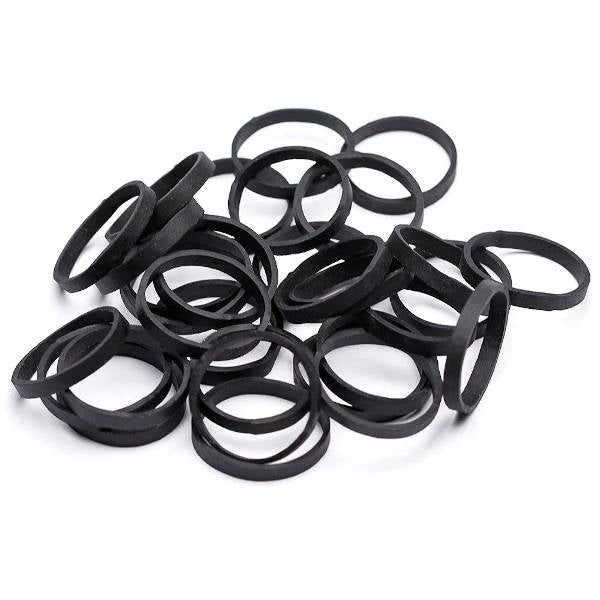

Elastic Bands

Regular price $3.00 Save $-3.00

Black
Bag of 100

SwissTattooMachine Stealth Needle Guide

Regular price $80.00 Save $-80.00

Needle guide for the SwissTattooMachine Stealth Rotary.

Just bolts on.

Inkjecta Nano Cap

Regular price $20.00 Save $-20.00

Inkjecta X1 and Nano Cam

Regular price $30.00 Save $-30.00

Cams for adjusting stroke length of your Inkjecta Flite X1 and Nano.

These cams are also compatible with the Flite V2 Combo and Vice models.

InkJecta Nano Drive Bar Stainless

Regular price $10.00 Save $-10.00

This 86mm stainless steel rigid needle bar can be used instead of spring mounted needle bar to increase the hardness with which the tattoo needle penetrates the skin.

InkJecta Nano Drive Bars 3 Pack

Regular price $55.00 Save $-55.00

These various styles of push bar for your Flite Nano will allow you to modify the "give" or how hard your needle hits the skin.

Consult your Flite Nano user manual for details on how to adjust the give within each Torsion Bar.

These bars are all compatible with the Flite V2 Combo (not including the Vice model).

Inox MX6 lubricant

Regular price $9.50 Save $-9.50

15g tube of Inox MX6 lubricant.
