Description
- Material: CNC crafted Aircraft Aluminum

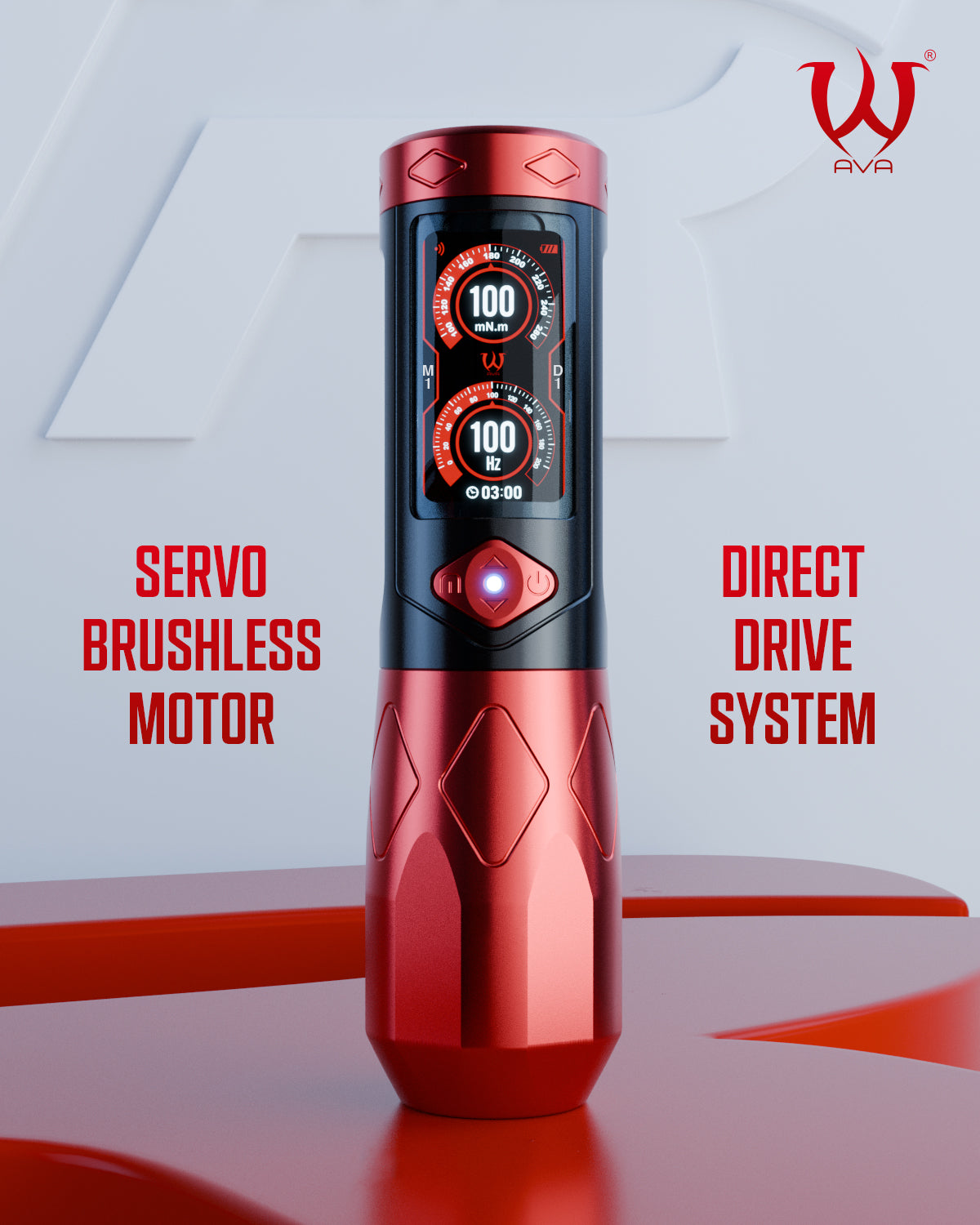

- Motor: Servo brushless motor
- Screen: Curved Glass HD
- Weight: 245g with battery

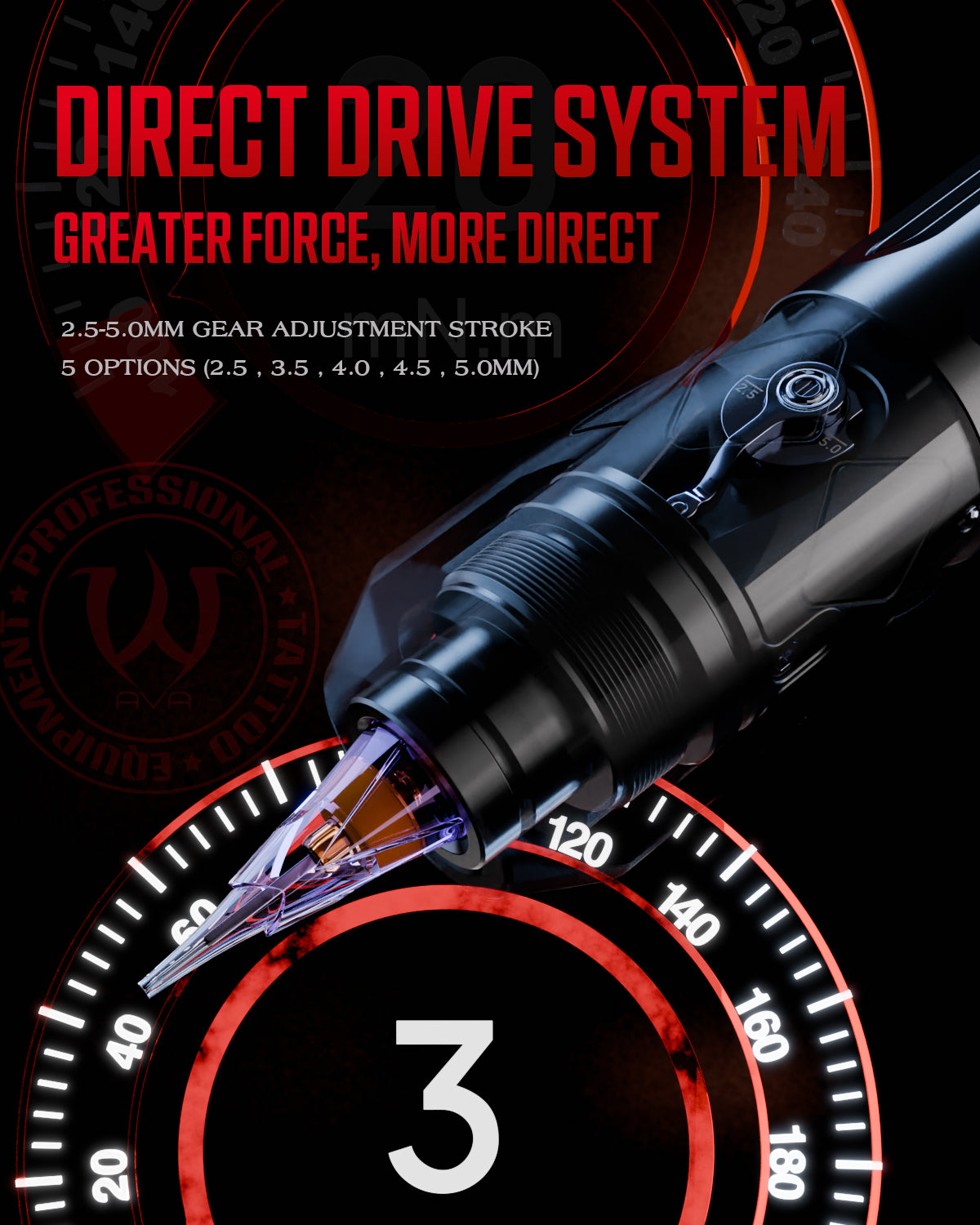

- Stroke: 2.5-5.0mm Internal adjustable stroke 5 Options
- Motor Speed:10000(rpm)
- Upgraded to a replaceable 18650 lithium-ion battery for larger capacity and longer working time.
- Adopts a direct-drive system with low wear and more direct power transmission.

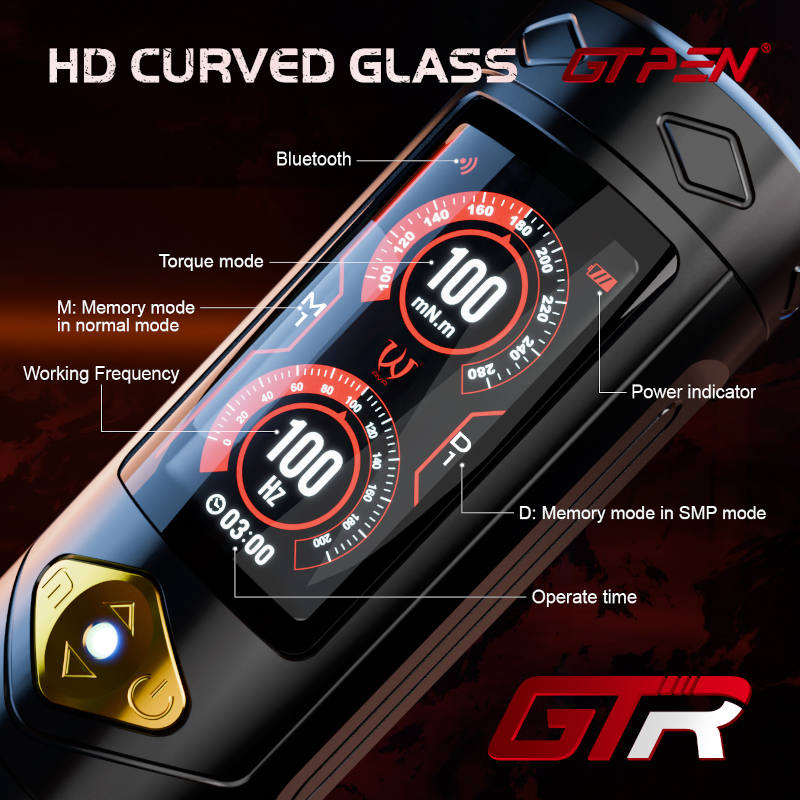

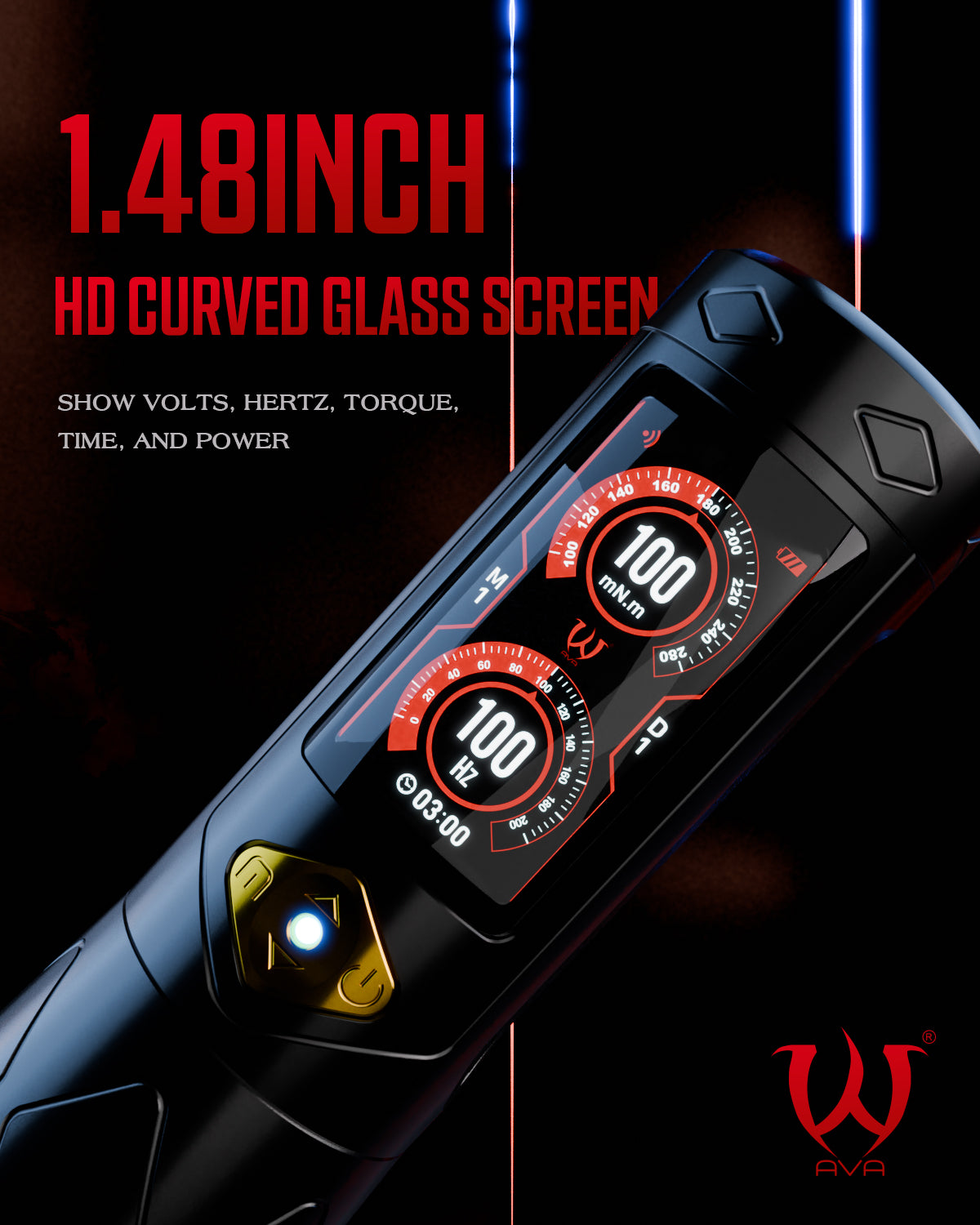

- The high-definition color screen shows working mode, voltage, frequency, torque, timing, and power.
- Our product has a memory function with two positions: M for Normal mode and D for Stippling mode.

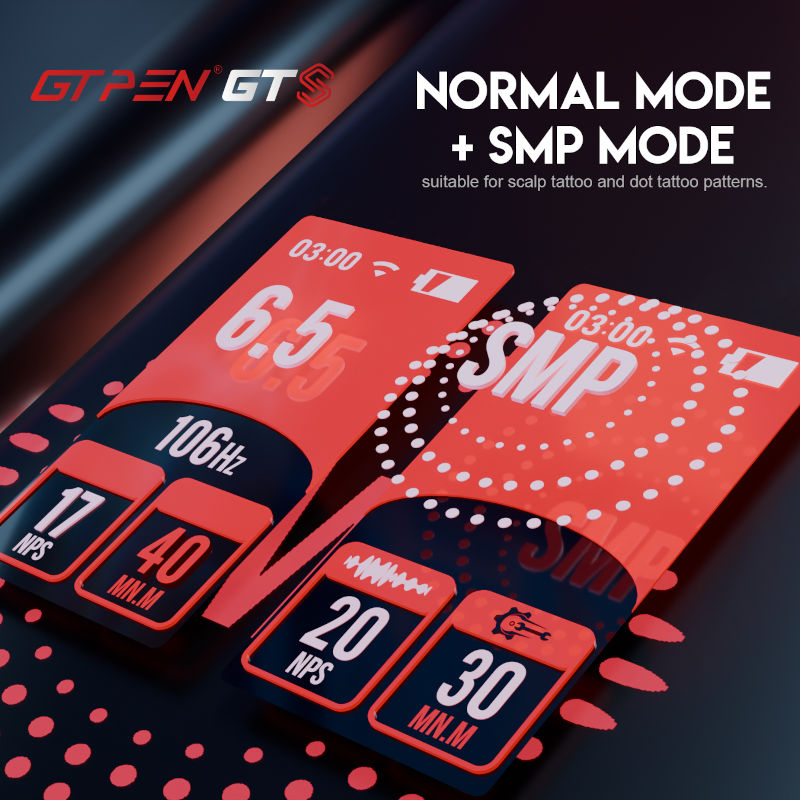

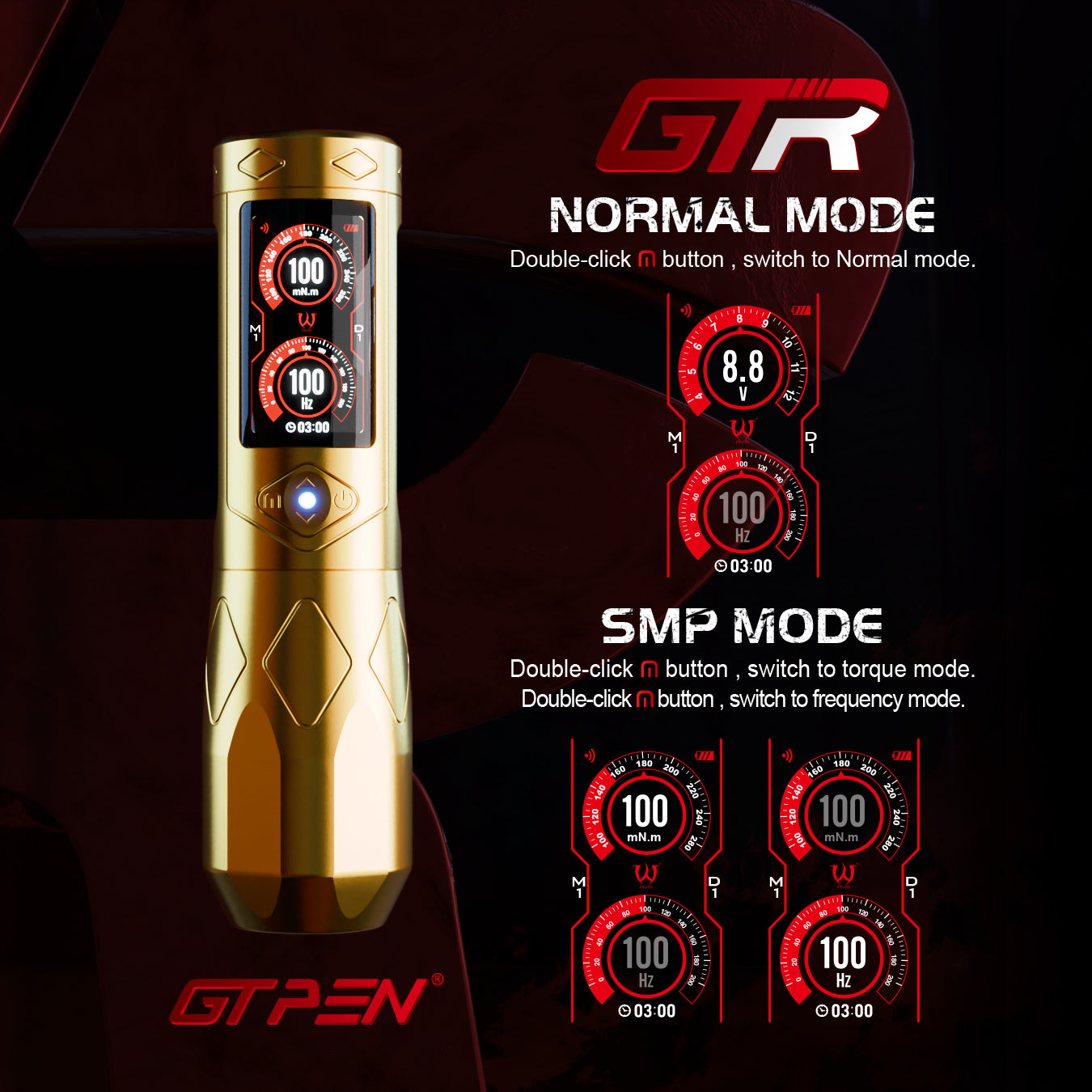

- There are two working modes: Normal and Prick. In Prick mode, there are two sub-modes: adjust torque with constant frequency or adjust frequency with constant torque to meet tattoo artists' different needs.
- When the white light is on, it's in Normal mode. Press “+” and “-” to adjust voltage and frequency. In Prick mode, pink light means constant torque with adjustable frequency (suitable for SMP), and red light means fixed frequency with adjustable torque.

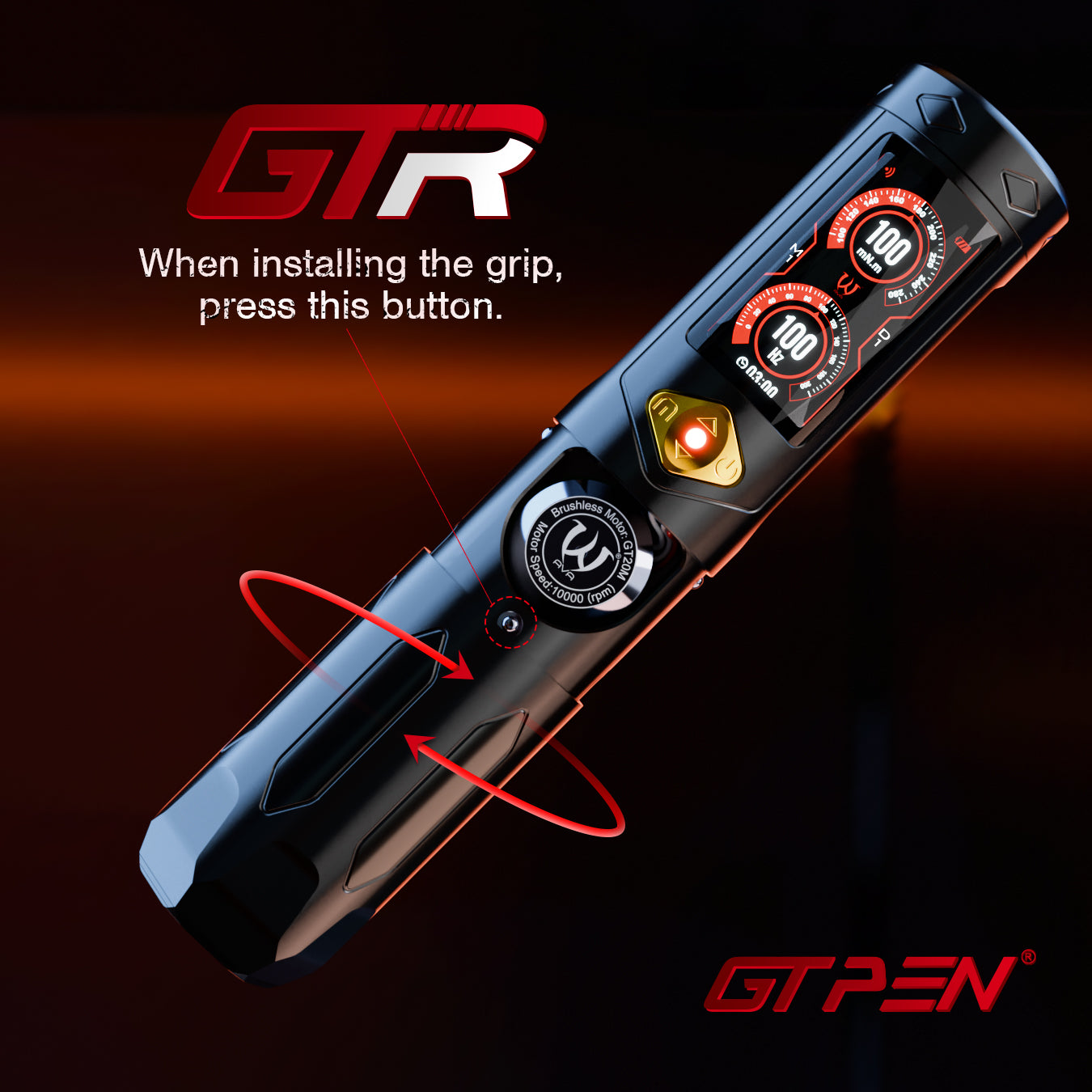

- Telescopic grip: Internal grips of different sizes for easy disinfection. The needle direction stays in line with the screen when adjusting needle protrusion length.
- Equipped with a wireless Bluetooth foot pedal, compatible with all AVA Bluetooth machines, enabling easy start and pause of work.
- Timing function: Timing starts when the machine is on. Timing data is saved even after battery replacement. Long-press the 'M' key for 3 seconds to clear the timing.
Warranty
Shipping & Returns
All deliveries are sent by Australia Post with the choice of Express or Parcel post at checkout. Delivery charges are calculated using actual Australia Post rates. Please checkout here for more info
AVA GTR IN DETAILS
What's more with AVA GTR Machine?
This machine features an adjustable internal stroke from 2.5mm to 5.0mm. It easily adapts to lining, shading, packing, or SMP work. Its servo brushless motor and direct-drive system deliver smooth, consistent power with minimal vibration for better ink saturation and control.
Designed for professional workflows, the Ava GTR includes customisable frequency and torque settings, memory presets, and a high-definition colour display for real-time performance monitoring.
The replaceable 18650 lithium-ion battery provides longer run time, while the Bluetooth wireless foot pedal allows hands-free operation for a seamless tattooing experience.
HOW TO ADJUST AVA GTR STROKE
- Turn off the machine and remove the battery for safety.
- Unscrew and remove the grip to access the internal stroke adjustment mechanism.
- Locate the stroke adjustment dial inside the machine.
- Rotate the dial to your preferred stroke length (2.5 / 3.5 / 4.0 / 4.5 / 5.0 mm).
- Reassemble the machine by reinstalling the grip and battery.
AVA
ABOUT THE BRAND
AVA is a manufacturer in the professional tattoo equipment segment, specialising in rotary pen machines and wireless solutions. All machines are crafted from high-quality aircraft-grade aluminium and equipped with brushless DC motors that guarantee consistent performance even during long sessions.
What sets AVA apart from many other brands is its focus on practical innovation: voltage control via tilt angle, interchangeable batteries, integrated LCD displays, and separate liner/shader modes are not optional extras – they are standard. This makes AVA machines particularly appealing for artists who want to make the switch to wireless without sacrificing control or reliability.
AVA
ABOUT THE BRAND
AVA is a manufacturer in the professional tattoo equipment segment, specialising in rotary pen machines and wireless solutions. All machines are crafted from high-quality aircraft-grade aluminium and equipped with brushless DC motors that guarantee consistent performance even during long sessions.
What sets AVA apart from many other brands is its focus on practical innovation: voltage control via tilt angle, interchangeable batteries, integrated LCD displays, and separate liner/shader modes are not optional extras – they are standard. This makes AVA machines particularly appealing for artists who want to make the switch to wireless without sacrificing control or reliability.
FAQ
How do I adjust the stroke on the AVA GTR?
To adjust the stroke, remove the grip and rotate the internal stroke adjustment dial to your preferred setting. Once set, reinstall the grip and battery before using the machine.
Does the machine have preset memory settings?
Yes. The AVA GTR includes a memory function that can store up to 9 custom presets, allowing artists to save their preferred voltage, frequency, and torque settings for faster setup.
What motor does the AVA GTR Tattoo Machine use?
The AVA GTR uses a servo brushless motor capable of reaching up to 11,000 RPM. This motor provides smooth, stable performance with minimal vibration, helping tattoo artists achieve consistent lines and better ink saturation.
How long does the AVA GTR battery last?
The AVA GTR uses a 2500mAh 18650 lithium-ion battery that typically lasts around 2 to 5 hours per charge, depending on your voltage, torque settings, and tattooing style.
